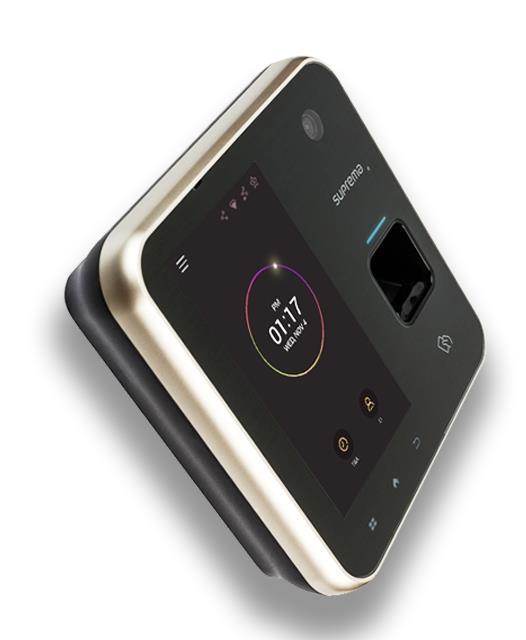

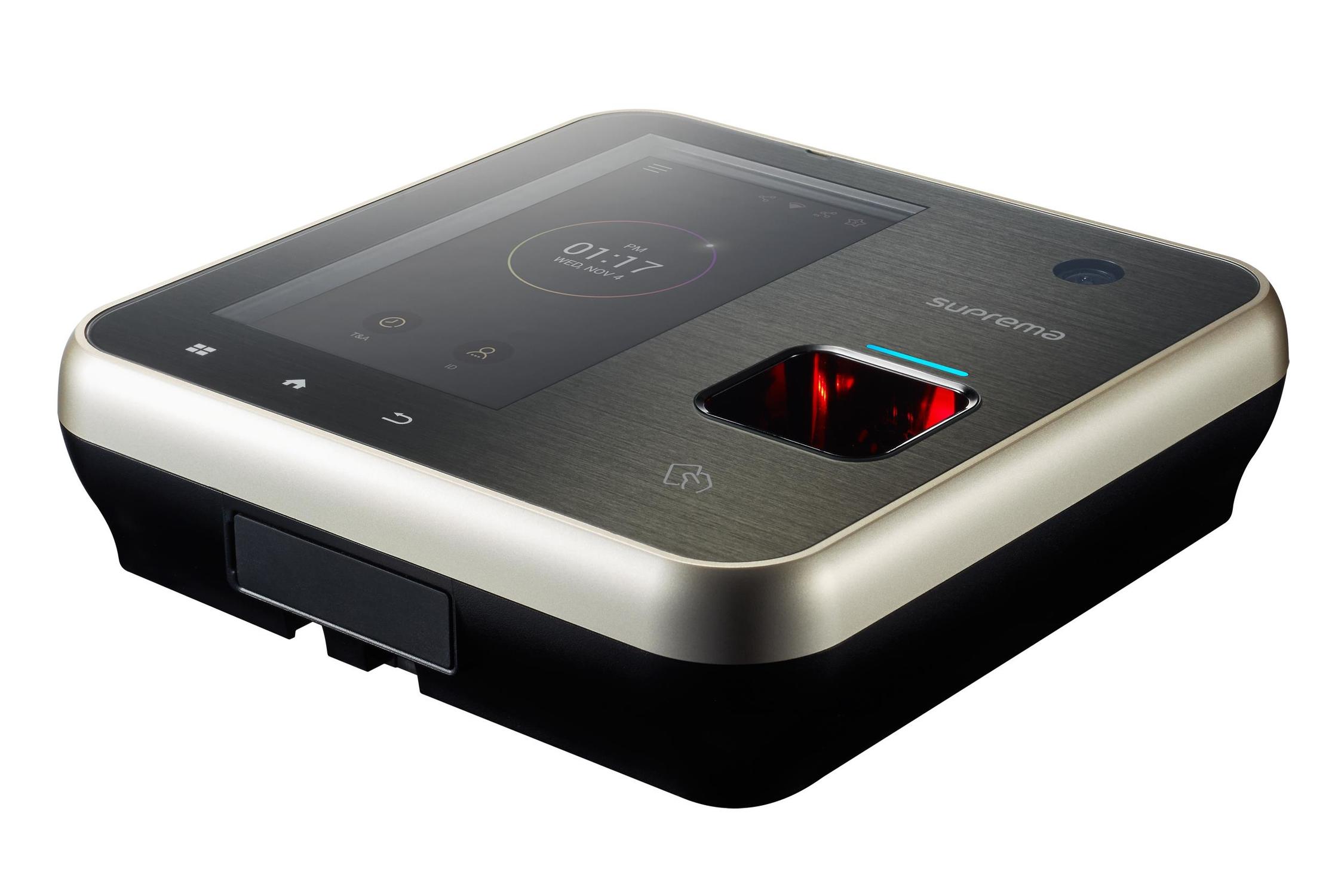

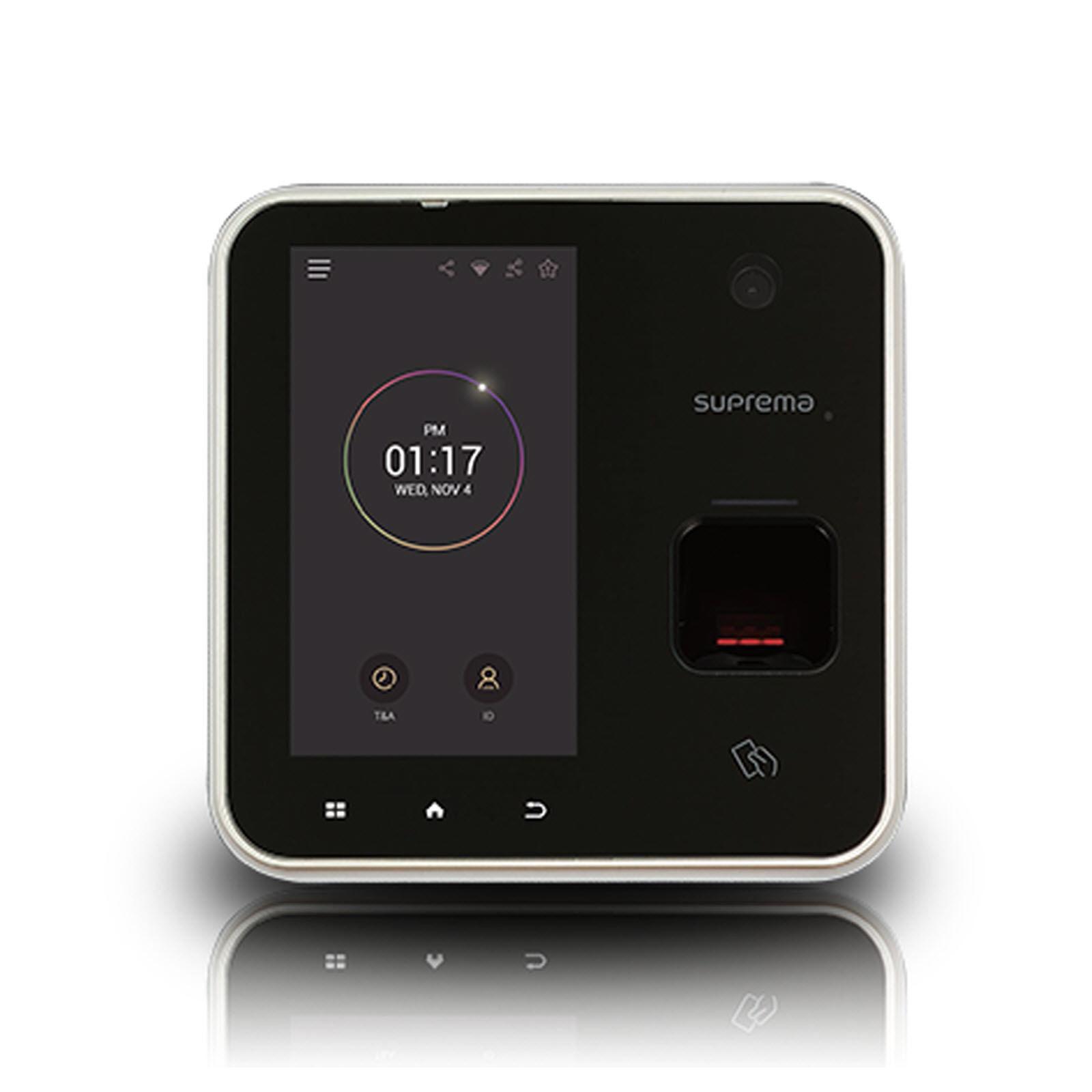

SUPREMA BSA2-OIPW
- Biometric identification : Fingerprint
- Wiegand interface : 1x In or Out
- Power supply : 12VDC, POE
- BioStar software compatibility : From BioStar 1.92 / BioStar 2.x
- Max users [1:1] : 10000
| Serial interface | RS232, RS485 |
|---|---|
| USB Interface | 1 x USB Rear Pannel |
| Wiegand interface | 1x In or Out |
Environmental
| Working Temperature (°C) | From -20 to 50 |
|---|---|
| Tamper | Back contact |
| Dimensions (H x W x D) [mm] | 155 x 155 x 40 |
Specifications
| Power supply | 12VDC, POE |
|---|---|
| Current max [mA] | 1500 |
| LED display | none |
| Touchscreen | Yes |
| LCD display | None |
| Sound | 16 Bit Hi-Fi |
| Card technology | iCLASS 13.56MHz |
Programmable Wired Outputs
| Relay outputs | 2 |
|---|
Network
| IP Ethernet | RJ45 – Min. Cat 5 – 10/100 Base T |
|---|
Programmable Wired Inputs
| Number of wired inputs | 4 |
|---|
System
| Memory RAM | 512 MB |
|---|---|
| Memory Flash | 4GB |
| CPU | 667MHz CPU + 1.1GHz DSP |
Biometrics
| Biometric identification | Fingerprint |
|---|
Capacity
| Max users [1:1] | 10000 |
|---|---|
| Max users [1:N] | 1000 |
| Max. templates (1:1) | 250000 |
| Max. templates (1:N) | 25000 |
| Max. text log events | 1000000 |
| Max. image log events | 5000 |
Features
| BioStar software compatibility | From BioStar 1.92 / BioStar 2.x |
|---|
Wifi
| WiFi | IEEE 802.11 b/g |
|---|
Additional information
| brands | Suprema |
|---|
