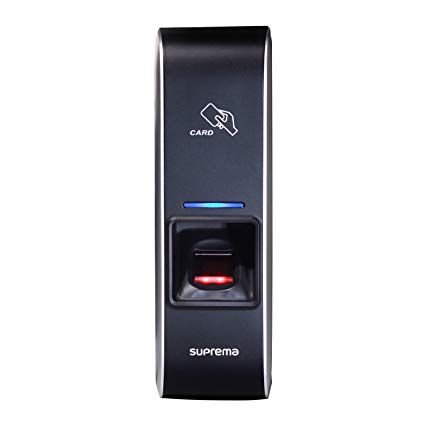

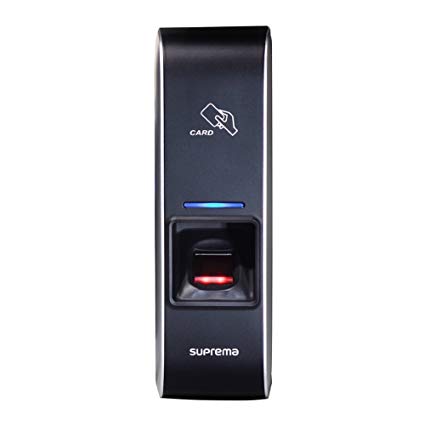

SUPREMA BEPH-OC-V2
- Biometric identification : Fingerprint
- Wiegand interface : 1x In or Out
- Power supply : 12VDC
- BioStar software compatibility : From BioStar 2.x
- Max users [1:1] : 5000
- IP Ethernet : RJ45 – Min. Cat 5 – 10/100 Base T
External Interface
Serial interface | RS485 |
---|---|
USB Interface | None |
Wiegand interface | 1x In or Out |
Environmental
Working Temperature (°C) | From -20 to 50 |
---|---|
Tamper | Back contact |
Dimensions (H x W x D) [mm] | 160 x 50 x 37 |
Specifications
Power supply | 12VDC |
---|---|
Current max [mA] | 1500 |
LED display | 1 LED Tricolor |
Touchscreen | No |
LCD display | None |
Sound | Multi-tone buzzer |
Card technology | HID 125KHz |
Programmable Wired Outputs
Relay outputs | 1 |
---|
Network
IP Ethernet | RJ45 – Min. Cat 5 – 10/100 Base T |
---|
Programmable Wired Inputs
Number of wired inputs | 2 |
---|
System
Memory RAM | 8 MB |
---|---|
Memory Flash | 8MB |
CPU | 533MHz DSP |
Biometrics
Biometric identification | Fingerprint |
---|
Capacity
Max users [1:1] | 5000 |
---|---|
Max users [1:N] | 5000 |
Max. templates (1:1) | 10000 |
Max. templates (1:N) | 10000 |
Max. text log events | 50000 |
Features
BioStar software compatibility | From BioStar 2.x |
---|
Wifi
WiFi | none |
---|
Additional information
brands | Suprema |
---|
