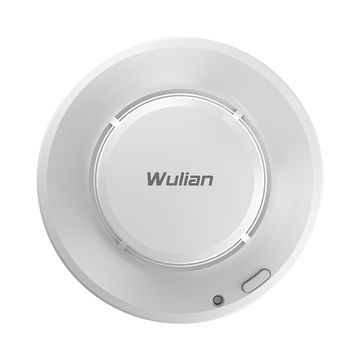

SMART HONEYWELL SMOKE DETECTOR

SMART HONEYWELL SMOKE DETECTOR- Home Automation System

It is a smoke detector for family use; can be used independently as a photoelectrical smoke detector.
When smoke concentration exceeds alarming value, send light and sound warning locally

Features

•  Communication Mode: IEEE 802.15.4 (ZigBee/SmartRoom).
• Smoke detector for family use; can be used independently as a photo electrical smoke detector; when smoke concentration exceeds alarming value send light and sound warning locally.
• Can be connected into alarming sirens; When one siren rings alarm, others will ring together to make dangerous situation be notified.
• Easy for onsite testing. Press test switch, light and sound signal will be sent if the device works well.
• Work independently by 9V battery; send reminding message in low battery or when battery is not installed.

Parameter
Communication Mode:                                   IEEE802.15.4 (ZigBee/SmartRoom)
Power Parameter:                                            DC 9V
Quiescent Current:                                          ≤15μA
Power Supply:                                                   Alkaline battery*1—— (Energizer)
Model:                                                                ENERGIZER 522
Alarm Current:                                                 Max. 40mA (relay operation, audio output)
Installation Method:                                       Mobile Type
Working Temperature/Humidity:               -10℃~+55℃ / 5%~ 93%RH(noncondensing)
Material & Color:                                             PC, White
Dimensions( L*W*H):                                    133*55(mm）
Net Weight:                                                       200g
Gross Weight:                                                   275g
