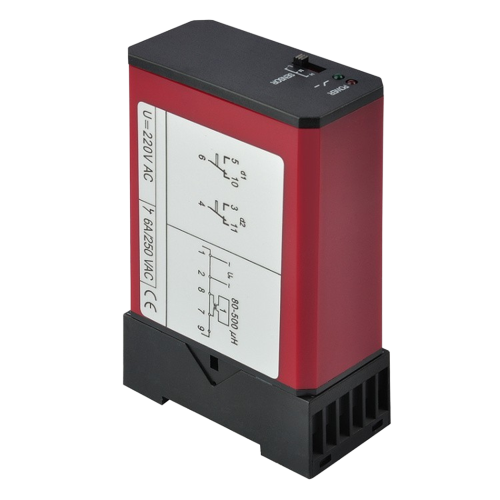

PSA-02 Induction (magnetic) loop controller
$49.89
PARAMETER
Working voltage АС 230/110 V ±10%, 50 Hz
Rated power 4,5 W
Voltage of relay AC 120 V/ 3 А
Working temperature -20°C~+65°C
Working humidity 10% ~ 90%
Working frequency 20 кHz~170 кHz
Time Infinite presence/ limited presence 5 minutes
Reaction time 10 ms
Recommended inductance of the coil 80-300 µH
Size 78х40х108 mm
PSA-02 – induction (magnetic) loop controller. Designed to determine whether the car in front of the barrier. The PSA-03 wire is connected to PSA-02 with a section of 1 sq. mm.
PARAMETER
Working voltage АС 230/110 V ±10%, 50 Hz
Rated power 4,5 W
Voltage of relay AC 120 V/ 3 А
Working temperature -20°C~+65°C
Working humidity 10% ~ 90%
Working frequency 20 кHz~170 кHz
Time Infinite presence/ limited presence 5 minutes
Reaction time 10 ms
Recommended inductance of the coil 80-300 µH
Size 78х40х108 mm
