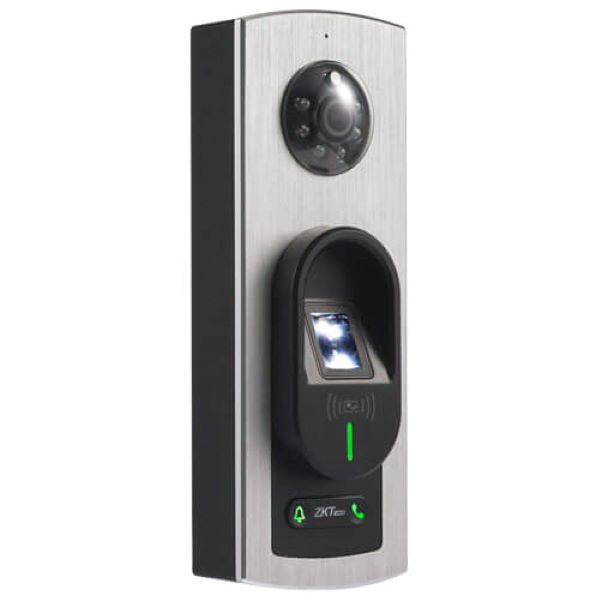

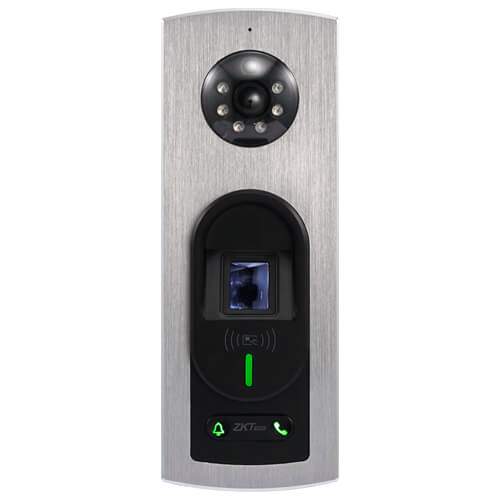

Notus Fingerprint access control terminal

Notus is an RFID and Fingerprint access control terminal with a built-in web server. Additionally, Notus serves as a component in the Video Intercom system. It has an HD camera (2MP/1080p) on it, and a built-in microphone and speaker for two-way audio and one-way video communication. When Notus is connected to the Wi-Fi (optional), it could be connected to ZKTeco’s smart video intercom application ZSmart on the phone. It therefore supports remote unlock with password, and it could save images captured and video recordings on ZSmart and ZKBio Access.

FEATURES

• Built-in microphone and speaker for two-way audio and one-way video communication with ZSmart Mobile App
• Remote unlock via ZSmart Mobile App
• Web Server
• Supports different types of RFID cards: ID / IC / IC EV1 (Optional)
• A&C push protocol
• Communication via TCP/IP and Wi-Fi (Optional)
• Connection to control panel via RS-485 and Wiegand
• Protection level: IP65
• Brushed metal surface

PARAMETER

Camera 2MP/1080P, IR light
Fingerprint Capacity 10,000
Card Capacity (Optional) 50,000 (Optional)
Log Capacity 200,000
Communication TCP/IP, Wi-Fi (Optional)
Access Control Interface 3rd-Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell, Wiegand In /Out
Standard Function ADMS, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Tamper Alarm, DST, Record Query, Anti-passback, ADMS, Web Server, External RS-485 Fingerprint / Card reader and Wiegand Reader
Card Frequency ID / IC / IC EV1 (Optional)
Biometrics Algorithm ZKFinger V10.0
Fingerprint RAR ≤0.0001%
Fingerprint FRR ≤0.01%
Protection Level IP65
Power Supply 12V 3A
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 20% – 80%
Dimensions (WxDxH) 80*34*219.5 (mm)
Supported Softwares/APP ZKBioAccess / ZSmart
