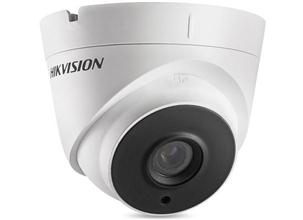

DS-2CE56D0T-IT1
??????????2 Megapixel high-performance CMOS
????????? Analog HD output, up to 1080P resolution
????????? True Day/Night
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8mm, 3.6mm, 6mm optional | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 – 360?, Tilt: 0 – 75?, Rotation: 0 – 360? | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -20 ?C – 45 ?C (-4 ?F – 113 ?F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC?15% | |
| Power Consumption: | Max. 4W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Dimension: | ?110 ? 93.2 mm(?4.33? ? 3.67?) | |
| Weight: | 350 g | |
Additional information
| brands | AHD Camera, CCTV, Hikvision |
|---|
