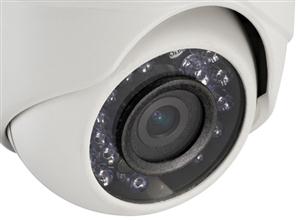

DS-2CE56D0T-IRM
????????? 2 Megapixel high-performance CMOS
????????? Analog HD output, up to 1080P resolution
????????? True Day/Night
????????? Smart IR
Camera | ||
---|---|---|
Image Sensor: | 2MP CMOS Image Sensor | |
Signal System: | PAL/NTSC | |
Effective Pixels: | 1920(H)*1080(V) | |
Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
Lens: | 2.8mm, 3.6mm, 6mm optional | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 – 360?, Tilt: 0 – 75?, Rotation: 0 – 360? | |
Day& Night: | IR cut filter with auto switch | |
Video Frame Rate: | 1080p@25fps/1080p@30fps | |
HD Video Output: | 1 Analog HD output | |
Synchronization: | Internal Synchronization | |
S/N Ratio: | More than 62 dB |
General | ||
---|---|---|
Operating Conditions: | -40 ?C – 60 ?C (-40 ?F – 140 ?F) Humidity 90% or less (non-condensing) |
|
Power Supply: | 12 VDC?15% | |
Power Consumption: | Max. 4W | |
Weather Proof: | IP66 | |
IR Range: | Up to 20m | |
Dimension: | 89.6 ? 59.1 mm (3.53? ? 2.33?) | |
Weight: | 340 g |
Additional information
brands | AHD Camera, CCTV, Hikvision |
---|
